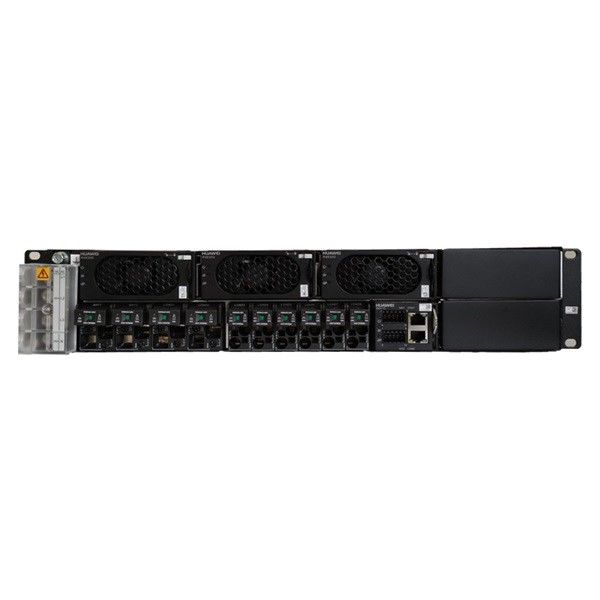

high efficiency AC embedded 19inch power system ETP48200-B2A1 rectifiers module R4815 R4830

Product

Type

ETP48200-B2A1

Syst em

Dimensions (width × depth × height)

×255 mm ×86.1 mm)

Weight

≤10 kg( no rectifier module)

Temperature Control Mode

Natural heat dissipation

Installation mode

Installation of 19 inch rack or embedded cabinet

Routeing

Move forward

Maintenance mode

Pre-maintenance

Protection level

IP20

AC

Distribution

Input format

220/380 V AC three phase, compatible with 220 V AC single phase,

110V AC Double Fire Line

HVDC( HVDC)

Input voltage

85~300 V AC, rated voltage :220 V AC

100V DC ~420 V DC, rated voltage: 200~380 V DC

Frequency

45~66 Hz, rated frequency :50/60 Hz

/

Input empty open

-

AC output

-

DC

Distribution

Output voltage

Voltage rating ~42~58 V DC,:53.5 V DC

Maximum capacity

kW 10

Battery empty

×100 A/1P

Load down

×80 A/1P,4×63 A/1P,2×40 A/1P

Battery down

-

Rectifier module

Type

R4815G1

R4830G1

Rated power

1000W (176~300 V AC)

2000W (176~300 V AC)

Dimensions (width × depth × height)

95.5 mm ×208 mm ×40.8 mm

Efficiency

>95%(25% to 100%With load)

>98%Maximum

>95%(25% to 100%With load)

>96%Maximum

Monitoring module

Type

SMU11C

SMU11B

Communications ports

RS485(Huawei master-slave agreement)

FE (SNMP protocol)

Envi ronmen t

Working temperature

-40℃~+65℃

(When used at 2000~4000 m altitude, the maximum operating temperature is

reduced by 1℃ per 200 m rise)

Storage temperature

-40℃~+70℃

Relative humidity

5%~95%(no condensation)

Height

~4000 m
