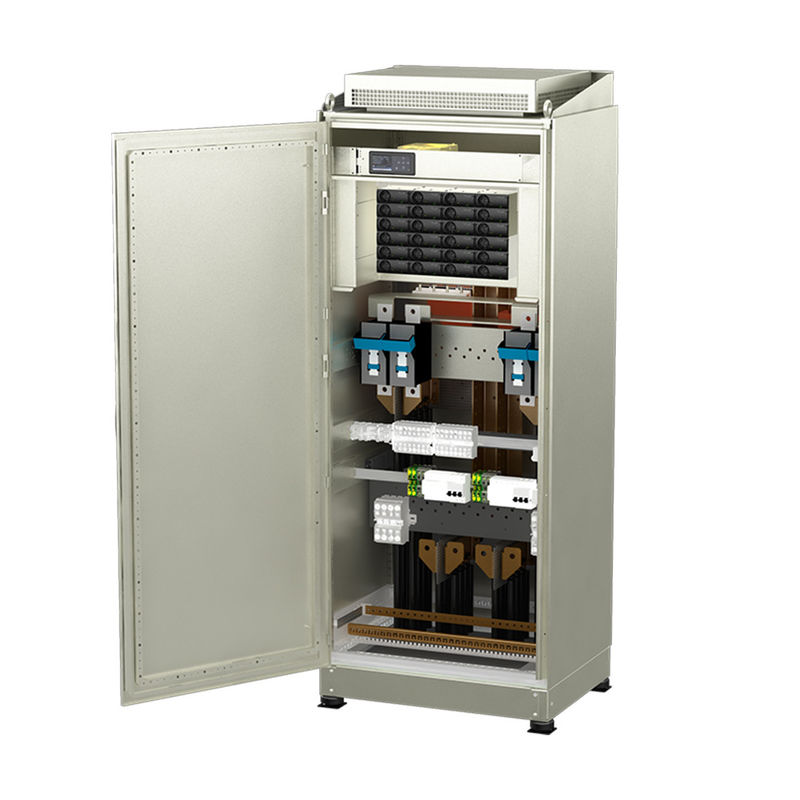

IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 24/1800 HE Rectifier

Name: IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 24/1800 HE Rectifier
Brand: xdsd, Eltek
SKU: Eltek Flatpack2 24V/48kW
Price: 500.00 USD
Availability: InStock
Rating: 4.5 (135 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: xdsd, Eltek

Certification: DNV 2.4

Model Number: Eltek Flatpack2 24V/48kW

Payment & Shipping Terms

Price: $500.00 - $1,999.00/sets

Packaging Details: Cartons or Wooden Frame

Supply Ability: 100 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                IP43  eltek flatpack power system, Smartpack2  eltek flatpack power system, IP43  eltek dc power system


Output Power:	48kw	Output Type:	Triple
Input Voltage:	220V	Output Voltage:	24V
Output Frequency:	50/65HZ	Output Current:	2000A
Application:	Marine	Warranty:	12months
Name:	Eltek Flatpack2 24V 48kw DC Power System	Dimension(WHD):	800 X 1800 X 600 Mm
Weight:	341 Kg	Output:	24V
Efficiency:	91%	Ingress Protection (IP):	IP43
Input Current (maximum):	2000 ADC	Port:	Shenzhen

Output Power:	48kw
Output Type:	Triple
Input Voltage:	220V
Output Voltage:	24V
Output Frequency:	50/65HZ
Output Current:	2000A
Application:	Marine
Warranty:	12months
Name:	Eltek Flatpack2 24V 48kw DC Power System
Dimension(WHD):	800 X 1800 X 600 Mm
Weight:	341 Kg
Output:	24V
Efficiency:	91%
Ingress Protection (IP):	IP43
Input Current (maximum):	2000 ADC
Port:	Shenzhen

IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 24/1800 HE Rectifier

Specification

Place of Origin	Shenzhen, China
Brand Name	xdsd
Model Number	Eltek Flatpack2 24V/48kW
Output Power	48kw
Output Type	Triple
Input Voltage	220V
Output Voltage	24V
Output Frequency	50/65HZ
Output Current	2000A
Application	Marine
Warranty	12months
Name	Eltek Flatpack2 24V 48kw DC Power System
Dimension(WHD)	800 x 1800 x 600 mm
Weight	341 kg
Output	24V
Efficiency	91%
Ingress Protection (IP)	IP43
Certification	DNV 2.4
Input Current (maximum)	2000 ADC

Recommend Products

Product Description

Flatpack2 24V/48kW DC power system:

The Flatpack2 24V 48kW has been specifically designed to meet the demand for higher density and more compact power solutions for marine applications worldwide. It is suitable for applications needing an expandable, easily serviceable and reliable power supply, fitting within aminimal space. The modular concept of the Flatpack2 systems makes it easy to scale the Flatpack2 24V/48kW to fit specific power needs from 4 to 48kW. A system with unused rectifier positions can be expanded later simply by adding more rectifiers. The power system is monitored by Smartpack 2 controller which has all the functionality required for present and future applications. It contains 6U of PRs (power rack) which can house 24 Flatpack2 rectifier modules.

Key features:

* DNV / ABS approved (pending)
* Scalable
* Hot swappable modular rectifier units
* High efficiency
* Digital controllers
* Heat management
* Unique connection
* Ingress protection up to IP43
