Product Details
Place of Origin: Guangdong, China
Brand Name: Vertiv / Emerson
Model Number: Netsure 531 A41
Payment & Shipping Terms
Price: $780.00/sets 1-9 sets
Packaging Details: Cartons or Wooden Frame
Supply Ability: 2000 Piece/Pieces per Month
Output Power: |
2kW-8kW |
Output Type: |
Single |
Input Voltage: |
200VAC-250VAC |
Output Voltage: |
48V |
Output Frequency: |
50/60HZ |
Output Current: |
120A |
Application: |
Telecom Equipment |
Product Name: |
Vertiv Netsure 531 A41 |
Warranty: |
12 Months |
Peak Efficiency: |
Rectifier: 96.2% |
Output Capacity: |
Rectifier: 2000W (max Up To 4 Units) |
Load Circuit Breakers / Fuses: |
Circuit Breakers |
System Type: |
Subrack |
Dimension(W*D*H): |
483 X 310 X 178mm |
Weight: |
≤25kg (exclude Rectifier And Controller) |
Efficient Rectifier Module: |
R48-2000e3 |
Port: |
Shenzhen |
Output Power: |
2kW-8kW |
Output Type: |
Single |
Input Voltage: |
200VAC-250VAC |
Output Voltage: |
48V |
Output Frequency: |
50/60HZ |
Output Current: |
120A |
Application: |
Telecom Equipment |
Product Name: |
Vertiv Netsure 531 A41 |
Warranty: |
12 Months |
Peak Efficiency: |
Rectifier: 96.2% |
Output Capacity: |
Rectifier: 2000W (max Up To 4 Units) |
Load Circuit Breakers / Fuses: |
Circuit Breakers |
System Type: |
Subrack |
Dimension(W*D*H): |
483 X 310 X 178mm |
Weight: |
≤25kg (exclude Rectifier And Controller) |
Efficient Rectifier Module: |
R48-2000e3 |
Port: |
Shenzhen |

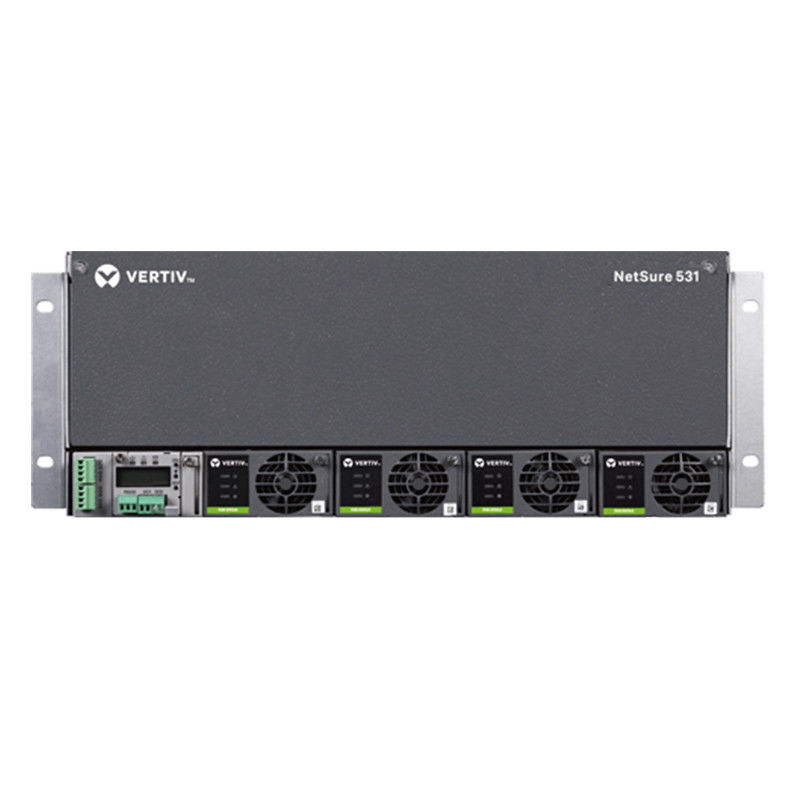

NEW Original 48v 75A Emerson Embedded DC Power Supply Rectifier System Vertiv Netsure 531 A41 Series A41-S2/S3/S4
|
Place of Origin
|
Guangdong, China
|
|
Brand Name
|
Vertiv/Emerson
|
|
Model Number
|
Netsure 531 A41
|
|
Output Power
|
2kW to 8kW
|
|
System Capacity
|
8kW
|
|
Input Voltage
|
200VAC-277VAC
|
|
Rectififier
|
Max: 4 x R48-2000e3
|
|
Controller
|
M221S / M222S / M830B
|
|
Output Current
|
120A
|
|
Application
|
Telecom Equipment
|
|
Warranty
|
12 Months
|
|
Peak Efficiency
|
Rectifier: 96.2%
|
|
output capacity
|
Rectifier: 2000W (max up to 4 units)
|
|
Load Circuit Breakers / Fuses
|
Circuit Breakers
|
|
System Type
|
subrack
|
|
Dimension(W*D*H)
|
483 x 310 x 178mm
|
|
Weight
|
25 kg(without module)
|
|
Matching Rectifier Module
|
50A (R48-3000A3 or R48-3000e3)
|
The Netsure 531 series from Vertiv is indeed a highly efficient and reliable DC power system specifically designed for mobile communication applications. Its integration of a rectifier and controller ensures maximum efficiency, making it an ideal choice for LTE and FTTx deployments, as well as macro stations.
One key feature of the Netsure 531 series is its high power density, allowing for compact and space-saving installations. This is particularly important in mobile communication applications where available space is often limited. The system’s fully digital features further enhance its performance and functionality, providing advanced control and monitoring capabilities.
The built-in R48-2000e3 rectifier in the Netsure 531 series is designed for exceptional energy efficiency, boasting an ultra-high efficiency rating of up to 96%. This high efficiency not only reduces energy consumption but also helps to lower operating costs and minimize environmental impact.
Overall, the Netsure 531 series offers a reliable, high-efficiency, and fully-integrated DC power solution for mobile communication applications. Its advanced features and compact design make it a versatile and cost-effective choice for various deployment scenarios.
