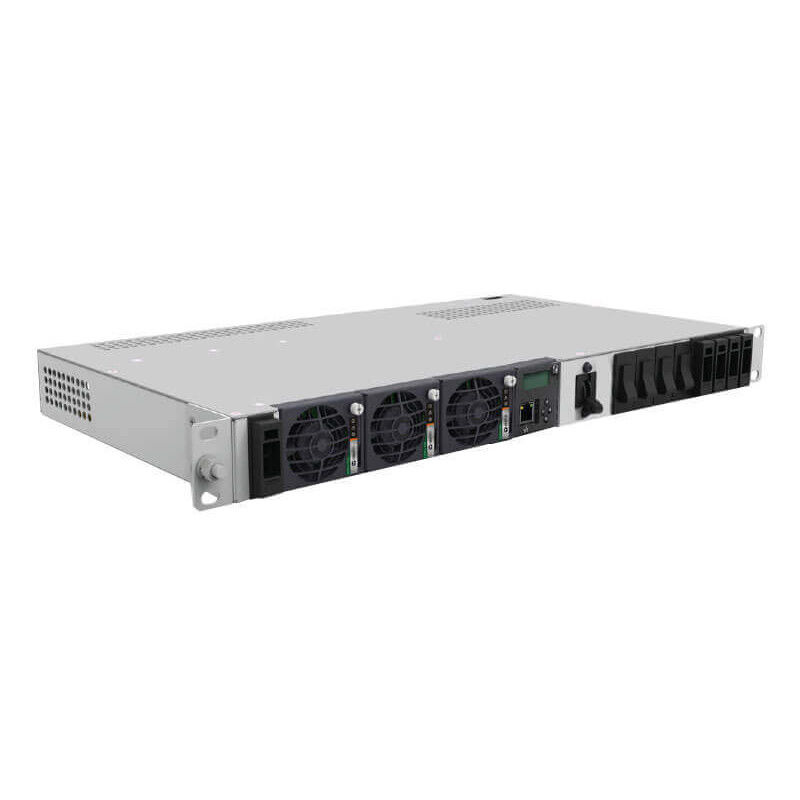

M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31

Name: M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Brand: Vertiv
SKU: Netsure 2100 A31
Price: 138.00 USD
Availability: InStock
Rating: 4.7 (182 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: Vertiv

Model Number: Netsure 2100 A31

Payment & Shipping Terms

Price: $138.00 - $698.00/sets

Packaging Details: Cartons or Wooden Frame

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Telecom Hybrid System Netsure 2100 A31, 60A  Hybrid System Netsure 2100 A31, Netsure 2100 A31 dc power supply system


Output Power:	>500W	Output Type:	Multiple
Input Voltage:	85-300Vac	Output Voltage:	-42.3 To 57.6 Vdc
Output Frequency:	45-65HZ	Output Current:	40-60A, 60A
Application:	Network Frame System / DAS / Telecom	Product Name:	Emerson Netsure 2100 A31
Warranty:	12 Months	Peak Efficiency:	Rectifier: 95.4%
Output Capacity:	Rectifier: 1000W (up To 3 Units)	EMC Class:	Class B
System Type:	Subrack / Embedded	Dimension(WDH):	482 X 240 X 43.6mm
Weight:	<4kg (excluding Rectifiers), <0.6kg For A Rectifier	Rectifier Module:	R48-1000e3
Port:	Shenzhen

Output Power:	>500W
Output Type:	Multiple
Input Voltage:	85-300Vac
Output Voltage:	-42.3 To 57.6 Vdc
Output Frequency:	45-65HZ
Output Current:	40-60A, 60A
Application:	Network Frame System / DAS / Telecom
Product Name:	Emerson Netsure 2100 A31
Warranty:	12 Months
Peak Efficiency:	Rectifier: 95.4%
Output Capacity:	Rectifier: 1000W (up To 3 Units)
EMC Class:	Class B
System Type:	Subrack / Embedded
Dimension(WDH):	482 X 240 X 43.6mm
Weight:	<4kg (excluding Rectifiers), <0.6kg For A Rectifier
Rectifier Module:	R48-1000e3
Port:	Shenzhen

M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31

Emerson Rectifier R48-1000e3 Controller M225S M831A 40A 60A 48V 1U Rack Embedded DC Power Supply System Netsure 2100 A31

OEM & ODM Service

Specification

Configuration Model	NetSure 2100 A31-S1	NetSure 2100 A31-S2	NetSure 2100 A31-S3
Capacity	40A	60A	60A
Controller	M225S (RS232interface)	M225S (RS232interface)	M831A (RS485 interface, network port)
Rectifier	20A(R48-1000e3)	20A(R48-1000e3)	20A(R48-1000e3)
AC Distribution	L+N+PE/220Vac 1x30A; quick-plug terminal
Lightning Protection	Class C (Optional)
DC Distribution	Battery: 1×30ABLVD : 1×20A,2×10A	Battery: 1×50ABLVD : 2×30A 1×10A 1×3A	Battery: 1×50ABLVD : 2×30A 1×10A 1×3A
Lightning Protection	≥10kA ( Optional )	≥10kA ( Optional )	≥10kA ( Optional )
Parameters	Diamentions: 483mm(W)×240mm(D)×44mm(H)(19 Inch 1U Height) Weight: ≤4kg (without rectifier)
Installation	Embedded

Recommend Products

Product Description

Features:

1. Ultra-compact sub-rack power system– delivers up to 3kW in 1U rack space;

2. Wide operating voltage range i.e. 85-300VAC;

3. Higher rectifier efficiency up to 95.4%;

4. All the breakers and connections are accessible from the front side;

5. Integrated distribution outlets;

6. Advanced intelligent battery management system;

7. Built-in communication & dry contact ports that enable remote monitoring;

8. Stores up to 4000 alarms;

9. Low audible noise under normal load and temperature conditions.

Applications:

1. Distributed Antenna

2. Systems (DAS)
3. Broadband
4. Radio Access Nodes - 3G/4G/5G
5. Wireline Access Nodes - FTTx applications
